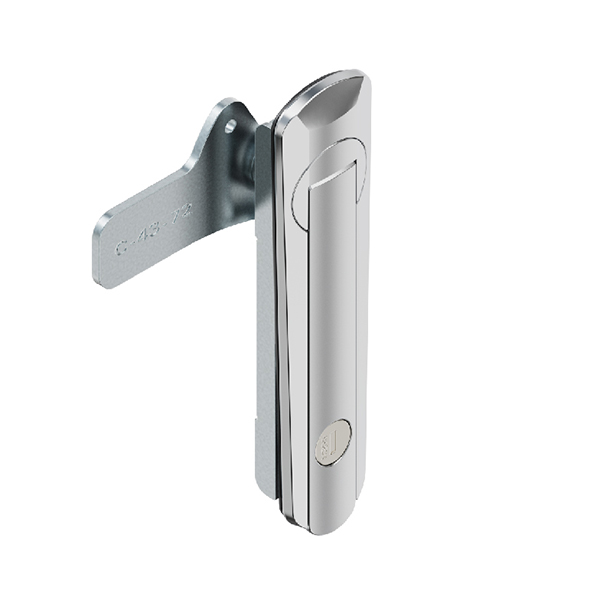

BT2325 Zinc Alloy Latch with 90° Rotation – Corrosion-Resistant, for Door Thickness 1~3mm
The BT2325 is a heavy-duty zinc alloy latch designed for industrial and commercial applications requiring precision and durability. Featuring a 90° rotation mechanism, this latch ensures secure locking and effortless operation. Constructed with zinc alloy body, pivot, zinc-plated lock plate, and pressure plate, it offers exceptional corrosion resistance and longevity. Suitable for door thicknesses of 1mm to 3mm, it is ideal for enclosures, cabinets, and access panels in demanding environments.
- Material: Zinc alloy body, pivot, zinc-plated lock plate, pressure plate.
- Lock Plate Opening:
- AB401-1 Model: 10×10mm (customizable).
- Other Models (Including BT2325): 8×8mm (standard).
Key Features
- 90° Smooth Rotation: Enables quick and secure locking/unlocking.
- Corrosion Resistance: Zinc-plated components ensure durability in harsh conditions.
- Wide Compatibility: Fits door panels from 1mm to 3mm thickness.
- Precision Engineering: Reinforced structure for high load capacity.
- Universal Design: Compatible with multiple lock plate configurations.
Technical Specifications
- Model Number: BT2325
- Surface Finish: Zinc plating (anti-rust treatment).
- Door Thickness Range: 1~3mm
- Lock Plate Opening: 8×8mm (standard) | 10×10mm (AB401-1 optional).

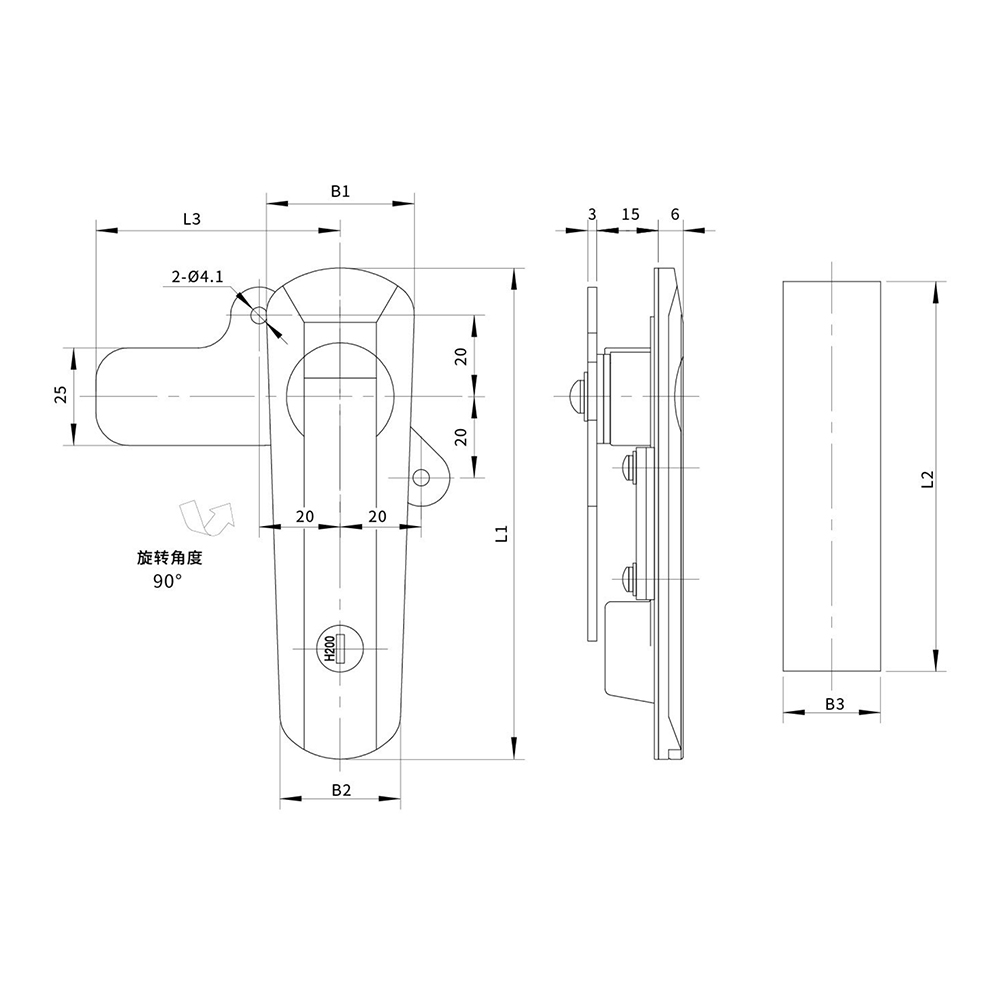

- Dimensions:
- Main Body:
- Length (L1): 151mm
- Width (B1): 36mm
- Height: 26.5mm
- Mounting Holes:
- Hole Spacing: 30mm (B2)
- Hole Diameter: 4.1mm
- Main Body:
Applications
- Industrial machinery access panels.
- Telecommunication cabinets.
- Medical equipment enclosures.
- Automotive control units.
Keywords
- BT2325 latch
- Zinc alloy industrial latch
- 90° rotation latch
- Corrosion-resistant latch
- Door latch for 1~3mm thickness
- Zinc-plated lock plate
- Heavy-duty cabinet latch
- AB401-1 lock plate
- Industrial enclosure hardware
- Precision-engineered latch
