BT6609 Stainless Steel Positioning Pull Handle with Rubber Sleeve, Mirror Polished Finish for Medical & Industrial Use
The BT6609 Positioning Pull Handle is a high-precision solution designed for applications requiring secure alignment, hygiene, and vibration resistance. Constructed from premium stainless steel with a mirror-polished finish, this handle integrates a positioning spring ball mechanism and a rubber sleeve for enhanced grip and shock absorption. Ideal for medical equipment, laboratory instruments, and industrial machinery, it combines durability with ergonomic functionality.
- Body: Stainless steel (AISI 304/316)
- Accessories: Rubber sleeve (anti-slip and vibration dampening)
Surface Finish:
Mirror polishing
Color/Appearance:
Polished silver with black rubber sleeve
Products Categories
Get A Free Quote
Key Features
- Positioning Spring Ball: Ensures precise alignment and secure locking.
- Rubber Sleeve Design: Provides anti-slip grip and vibration reduction.
- Hygienic & Corrosion-Resistant: Mirror-polished surface resists bacteria and chemicals.
- Durable Construction: Stainless steel body withstands heavy-duty use.
- Easy Installation: Pre-drilled M6 tapered holes (Ø16mm) for quick mounting.

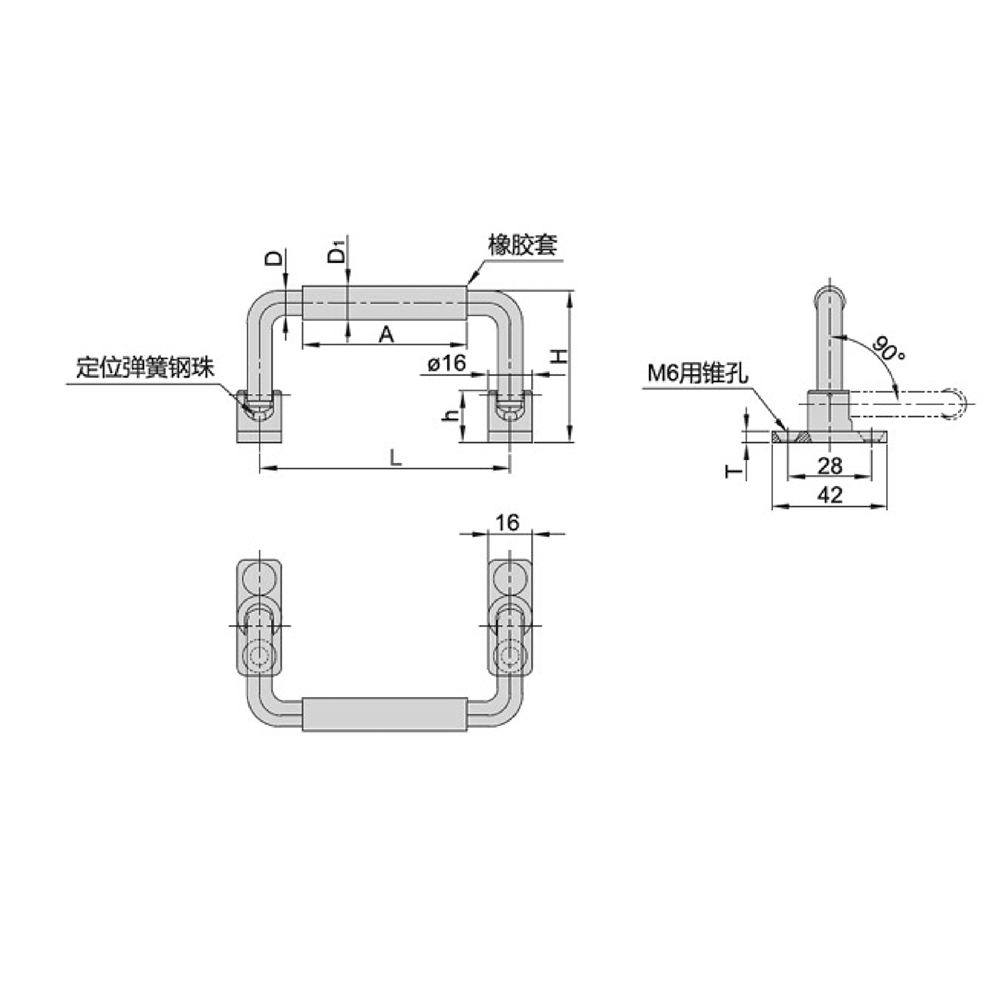

Specifications
- ensions (mm):
| Parameter | Value |
| D (Shaft Diameter) | 9 |
| D1 (Rubber Sleeve Diameter) | 12.8 |
| H (Total Height) | 49 |
| h (Cutout Height) | 19 |
| A (Mounting Distance) | 77 |
| T (Thickness) | 4 |
Mounting Details:- M6 tapered holes (Ø16mm)
- Center-to-center spacing: 42mm
Applications
- Medical sterilization equipment
- Laboratory instrument panels
- Food processing machinery
- Industrial vibration-prone enclosures
- Cleanroom access systems
