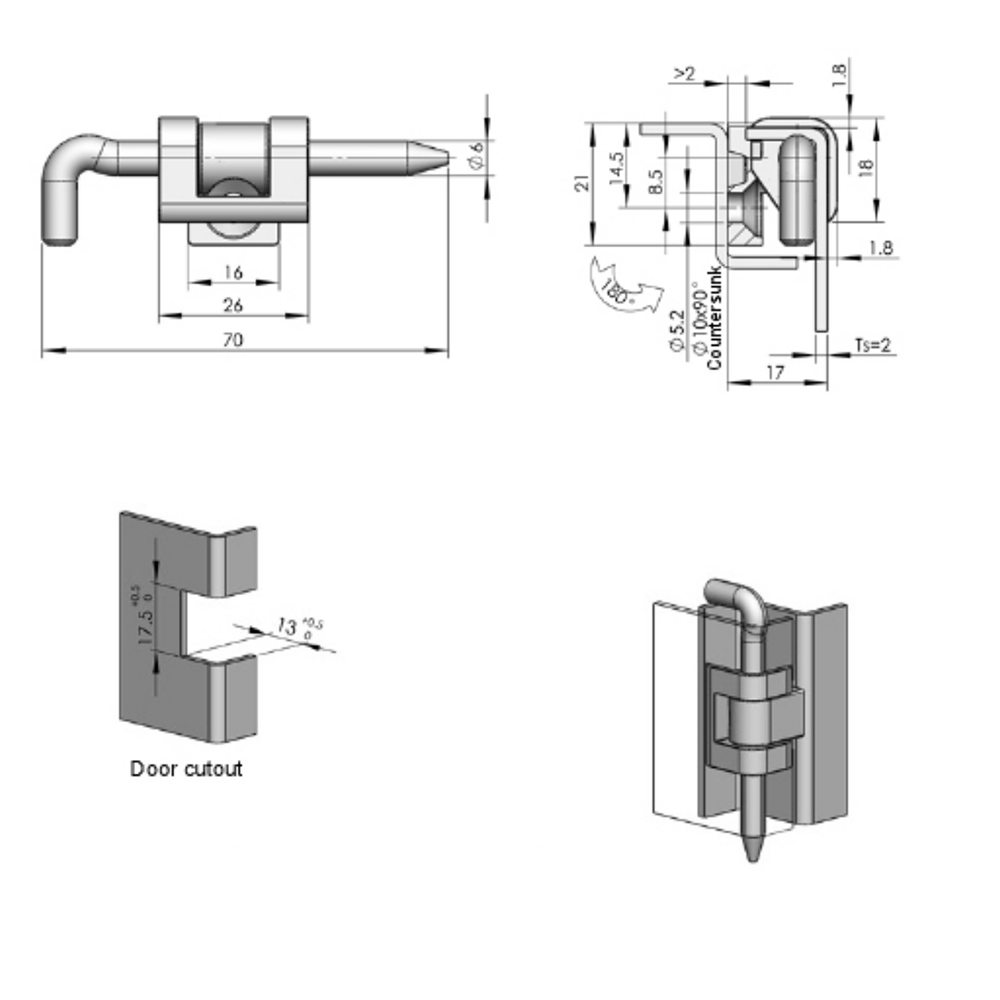

CL104 Corner Hinge, Removable Hinge, 180° Rotation, Zinc Alloy, Black Coated
The CL104 corner hinge is designed for applications requiring easy door removal and access, with a full 180° opening capability. This hinge ensures a flush fit and robust support, making it ideal for maintenance-intensive environments where doors need to be removed frequently.
Material:
Zinc alloy hinge body, stainless steel pin
Surface Finish:
Matte black coating
Color/Appearance:
Black
Products Categories
Get A Free Quote
Key Features
- Full 180° rotation for unrestricted access
- Removable hinge for easy maintenance and door removal
- Flush fit, enhancing the aesthetic and functionality
Specifications
- Maximum Static Load (Radial): 405N
- Maximum Static Load (Axial): 805N
- Compatible Door Thickness: 1-5mm
Applications
- Industrial cabinets
- Service panels
- Access doors requiring frequent maintenance
Keywords
Corner hinge, removable hinge, CL104, 180-degree rotation hinge, black zinc alloy hinge, maintenance access hinge, industrial cabinet hinge, E6 alternative
