DK602 Adjustable Draw Latch – Concealed and Exposed Options, 430N Capacity
The DK602 adjustable draw latch is a versatile, heavy-duty fastening solution designed for industrial and commercial applications. Available in both concealed and exposed styles, this latch is constructed from stainless steel or zinc-plated carbon steel for durability and corrosion resistance. Its ergonomic design and optional secondary catch provide enhanced safety and usability.
Material:
- Body: Stainless Steel or Carbon Steel
- Keeper: Stainless Steel or Carbon Steel, Zinc-Plated
-
Surface Finish and Color/Appearance:
- Stainless Steel: Electropolished for a sleek finish and superior corrosion resistance.
- Carbon Steel: Zinc-plated for durability in challenging environments.
Products Categories
Get A Free Quote
Key Features
- Adjustable Grip: Allows for fine adjustments to accommodate varying door/frame alignments.

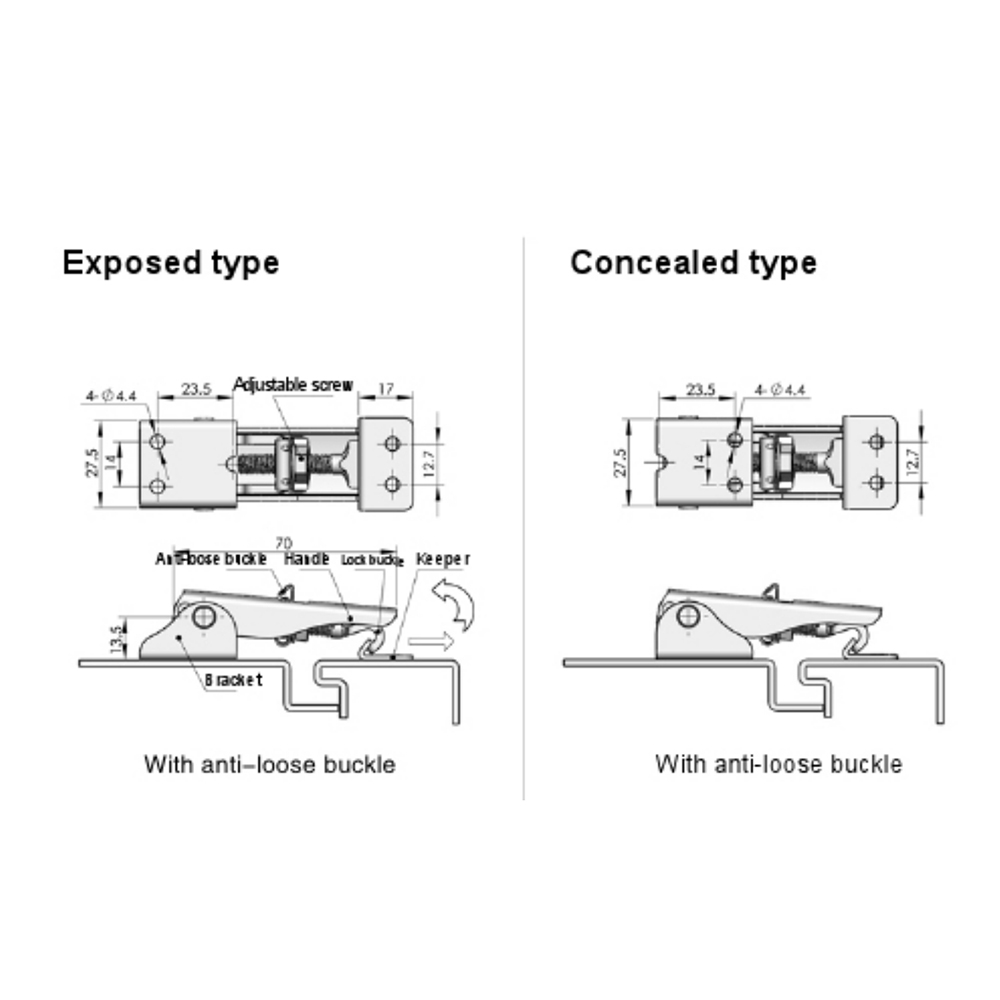

- Concealed and Exposed Options: Choose between concealed latches for streamlined appearances or exposed latches for easy access.
- High Load Capacity: Maximum static load of 430N for secure closure.
- Optional Secondary Catch: Prevents accidental openings, ensuring safety in critical applications.
- Flexible Mounting: Includes predefined mounting holes for easy installation with M4 screws.
Specifications
- Maximum Static Load: 430N
- Mounting Hole Dimensions: Ø4.4mm
- Installation Style: Compatible with both concealed and exposed applications.
- Dimensions:
- Exposed Base: 62-68mm (adjustable length)
- Concealed Base: 6mm minimum door/frame separation
Customization: Available with padlock hasps or secondary catches for additional security.
Applications
- Industrial machinery enclosures
- Automotive compartments
- Electrical cabinets
- Heavy-duty toolboxes
- Marine and storage units
Comparable Models
- Adjustable draw latches in the V7-20-101 and 91-630-52 range (keywords only, no direct references).
