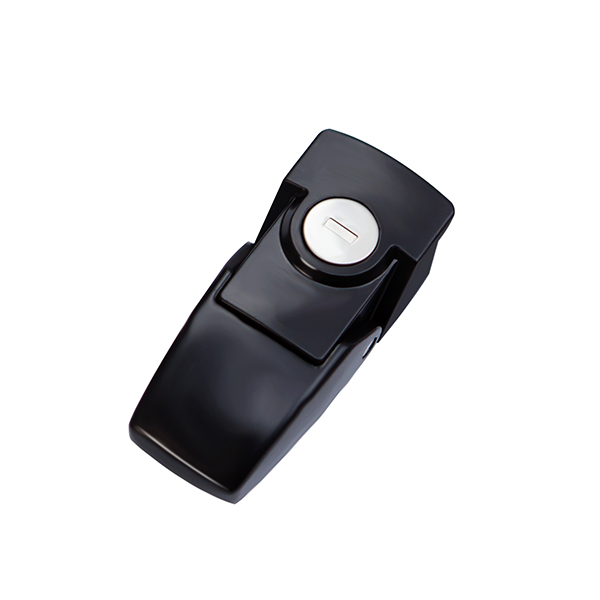

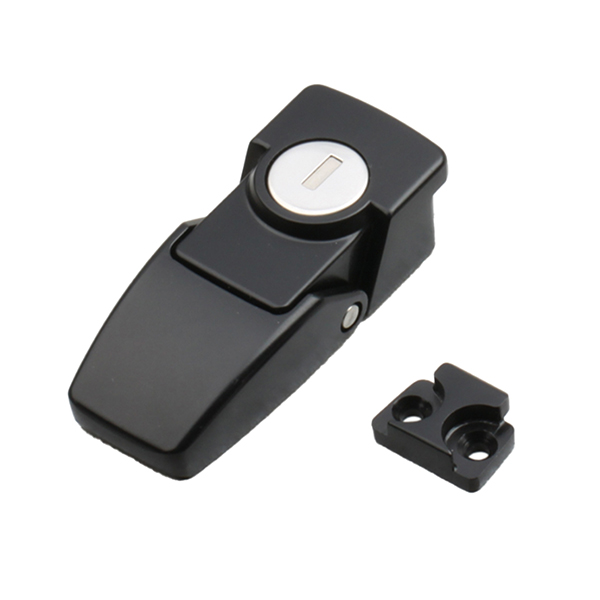

DK604 Draw Latch, Zinc Alloy, No Restriction, Black Powder Coated, 76mm Option Available
The DK604 is a high-quality zinc alloy draw latch, designed for versatile applications that require secure closure and durability. This latch features a black powder-coated finish for corrosion resistance and comes in two lock body lengths, including a 76mm option for additional application flexibility. Engineered as an alternative to comparable models, it supports industrial, cabinet, and enclosure installations requiring tamper-resistant and reliable latching.
Material: Zinc Alloy body and cover, with a stainless steel fixed frame
Surface Finish and Color/Appearance: Black powder-coated finish
Key Features
- No restriction in usage, suitable for various applications
- Available in standard and extended 76mm lock body lengths
- Optional lock core for enhanced security, compatible with K080 key selection
Specifications
- Maximum Static Load: 610N

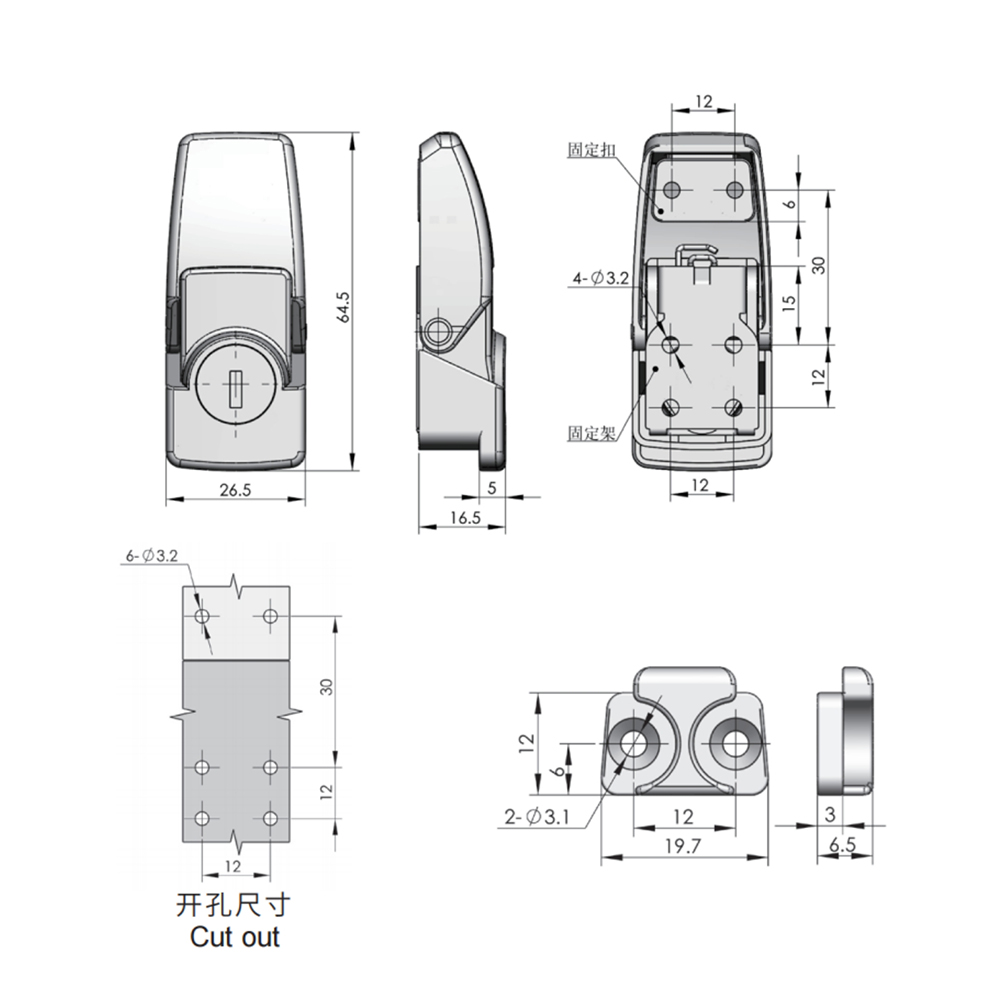

- Dimensions: See technical drawing for exact measurements
Applications
Ideal for use in cabinets, enclosures, access panels, and other installations that benefit from robust and tamper-resistant latching solutions.
Keywords
DK604, V7-20-101-10, V7-20-101-20, V7-20-101-50, V7-20-111-10, V7-20-111-20, V7-20-111-50, V7-10-105-10, V7-10-105-20, V7-10-105-50, V7-10-115-10, V7-10-115-20, V7-10-115-50, draw latch, 76mm lock body, zinc alloy latch, black powder-coated latch, industrial draw latch, high-security latch
