MS809 Cam Latch – Zinc Alloy, 90° Rotation Lock, Chrome-Plated Finish
The MS809 cam latch is a secure and efficient locking mechanism designed for a variety of industrial and commercial applications. Featuring a 90° rotation lock, it provides easy operation to lock or unlock access points. The latch is made from durable zinc alloy, with a corrosion-resistant chrome-plated finish, ensuring long-term reliability and a polished appearance. Compatible with K230 keys, this model is suitable for control cabinets, storage enclosures, and equipment panels.
Material:
- Housing and Lock Core: Zinc alloy
- Cam and Screw Nut: Carbon steel
Surface Finish and Appearance:
- Chrome-plated surface for enhanced corrosion resistance and professional aesthetics.
Products Categories
Get A Free Quote
Key Features
- 90° Rotational Functionality: Enables simple and effective locking/unlocking.
- Key Compatibility: Supplied with K230 keys as standard.
- Robust Construction: Made from premium zinc alloy for durability.
- Steel Cam Material: Uses S1B40Y00004 steel for high strength and reliability.
Specifications
- Max Static Load Capacity: 140 N
- Recommended Tightening Torque for Fixed Nut: 20 N·m

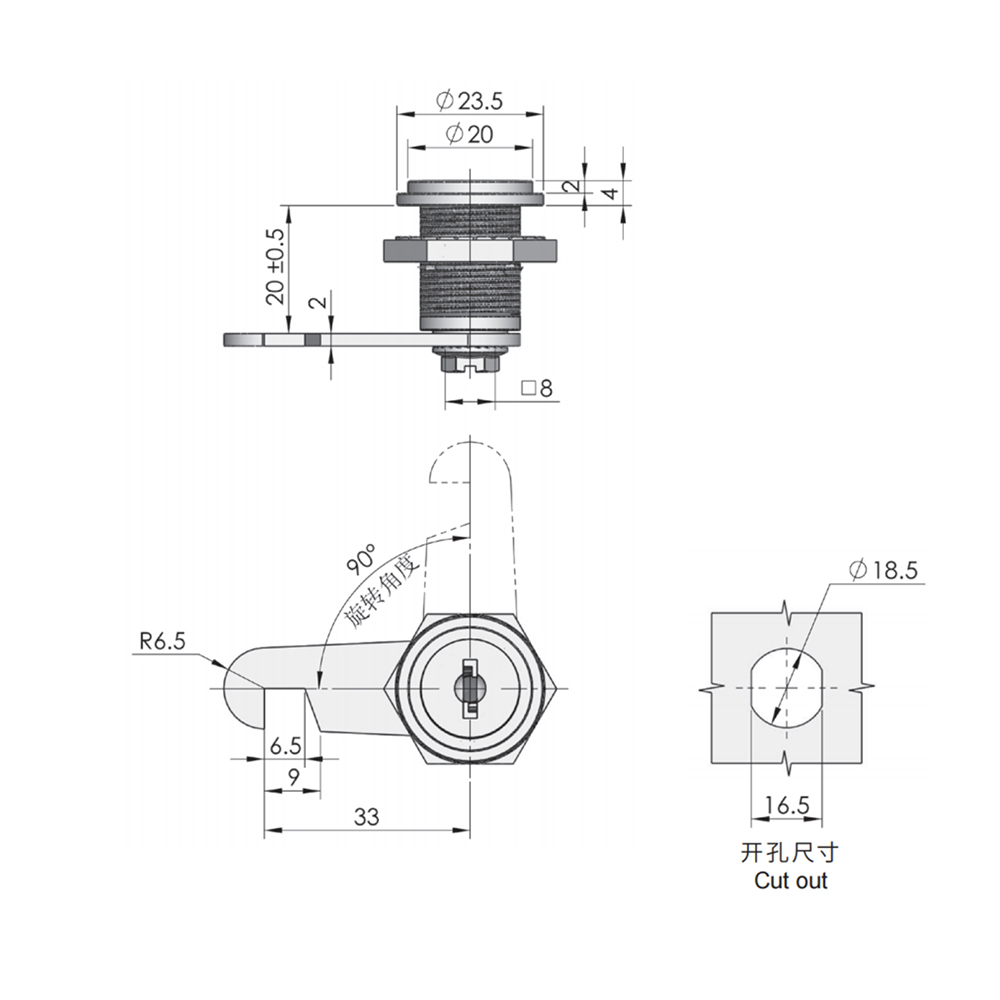

- Cut-Out Dimensions: Ø18.5 mm, square cut-out dimensions 16.5 mm x 16.5 mm
- Latch Dimensions: 33 mm cam length, R6.5 curve for secure fitment
Applications
- Ideal for industrial equipment, control panels, machinery access doors, and storage cabinets.
s
Keywords
MS809 latch, zinc alloy cam lock, 90° rotation latch, industrial cabinet lock, chrome-plated locking solution.
