MS816-1/MS816-1A Adjustable and Fixed Cam Locks – 90° Rotation with Optional Waterproof Cover
The MS816-1/MS816-1A series offers versatile cam locks designed for secure and efficient applications in industrial and commercial settings. These locks feature a 90° rotational mechanism, ensuring smooth opening and closing operations. The adjustable and fixed configurations allow for flexibility in installation. The durable zinc alloy base and PA pull-tab handle with a blue-gray finish enhance both functionality and aesthetics. Additional options, such as a waterproof cover or pull-tab accessory, make the MS816 series suitable for various environmental conditions.
Material:
- Base: Zinc alloy with a spray coating
- Lock Cylinder: Carbon steel
- Handle: PA (Polyamide) pull-tab (Optional on MS816-1)
- Cam and Components: Zinc-plated hardened steel
-
Surface Finish and Appearance:
- Base and Handle: Blue-gray spray coating for a sleek and durable finish.
- Cam: Zinc-plated for corrosion resistance and durability.
Products Categories
Get A Free Quote
Key Features
- 90° Rotation Locking Mechanism: Provides secure and efficient locking and unlocking.
- Adjustable and Fixed Models: MS816-1A offers an adjustable cam for flexible panel compatibility, while MS816-1 is non-adjustable for fixed installations.
- Optional Accessories: Compatible with HP001 pull-tab and WP001 waterproof cover for enhanced usability.
- Wide Compatibility: Multiple lock cylinder options, including triangular, square, and slotted designs.
- High Durability: Designed for heavy-duty industrial applications with strong materials and a robust locking mechanism.
Technical Specifications
- Max Static Load Capacity: 300 N
- Max Input Torque: 11 N·m
- Recommended Tightening Torque for Nut: 20 N·m
- Cut-Out Dimensions:
- Square: 19.5 x 19.5 mm
- Round: Ø22.5 mm

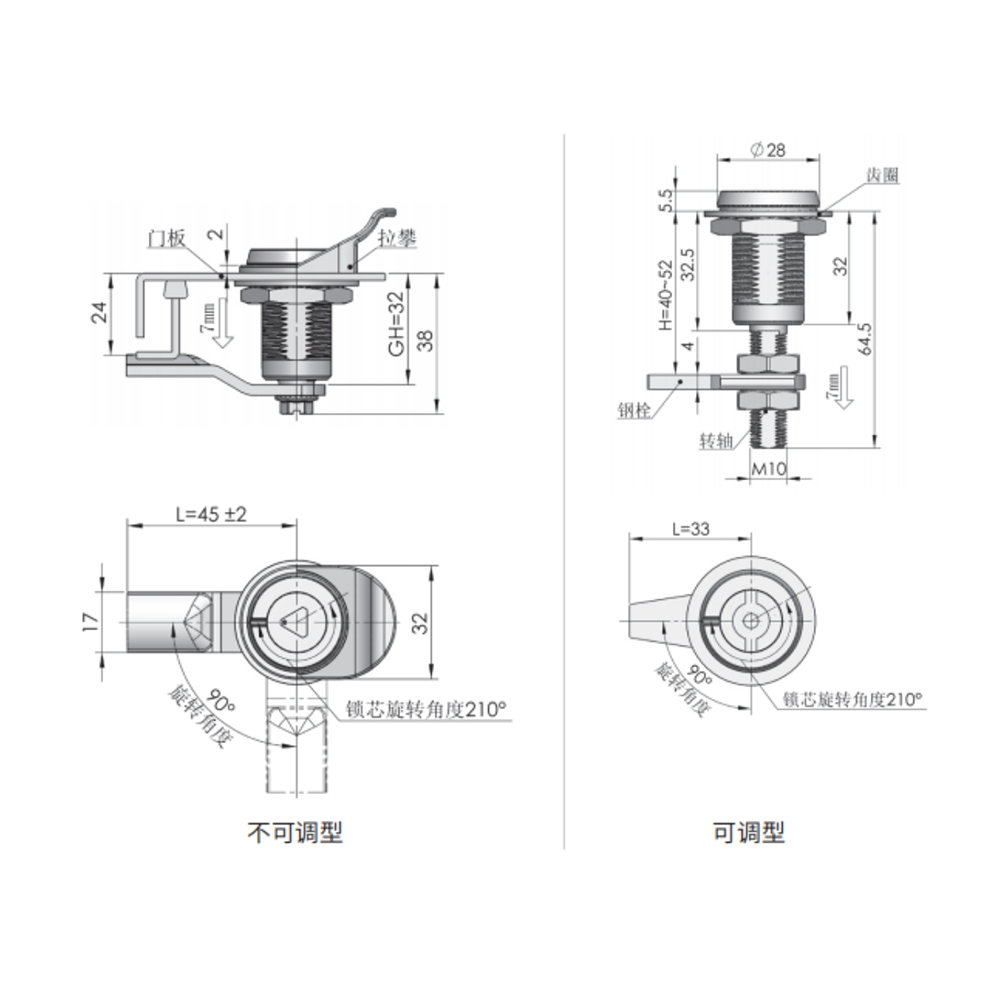

- Lock Dimensions:
- Handle Width: Ø28 mm
- Overall Height: Adjustable to panel thicknesses (Fixed TS = 32 mm, Adjustable TS = 40-62 mm)
Applications
- Ideal for control cabinets, industrial enclosures, electrical panels, and outdoor equipment requiring a secure locking solution.
