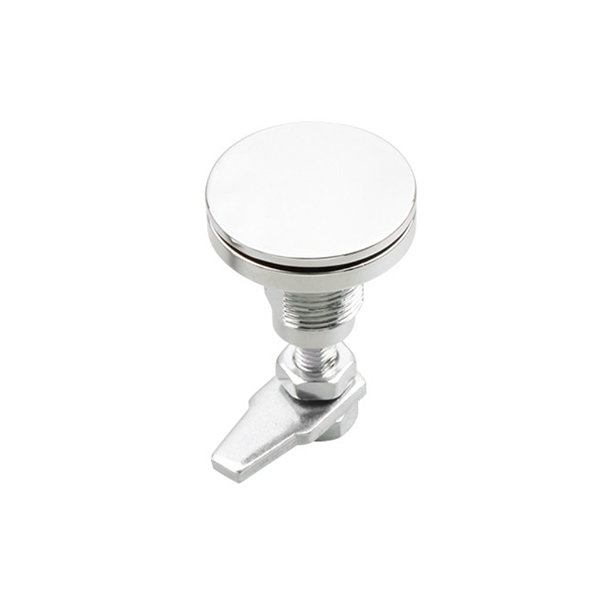

MS823 Series Cam Latches – Zinc Alloy, 90° Rotation, Fixed and Adjustable Options, Chrome-Plated Finish
The MS823 series cam latches offer versatile and durable locking solutions for industrial and commercial applications. Available in both fixed and adjustable models, these latches accommodate a wide range of panel thicknesses, ensuring flexibility in installation. Featuring a 90° rotational locking mechanism, the latches enable smooth operation for securing access panels or cabinets. Constructed from zinc alloy with a polished chrome-plated finish, the MS823 series provides both strength and corrosion resistance, making it ideal for demanding environments.
Material:
- Base and Lock Core: Zinc alloy
- Cam: Carbon steel
- Optional Adjustable Cam: Steel (S1M33Y00002, TS = 5)
Surface Finish and Appearance:
- Base: Polished chrome-plated finish for professional aesthetics and enhanced durability.
Products Categories
Get A Free Quote
Key Features
- Fixed and Adjustable Options: Includes fixed models (e.g., MS823-1) and adjustable models (e.g., MS823-1A) for panels up to TS = 5 mm.
- 90° Rotational Locking Mechanism: Ensures smooth and secure operation.
- Sleek Design: Circular top design for a clean and modern appearance.
- Robust Materials: High-quality zinc alloy and steel components for long-lasting reliability.
- Customizable Key Systems: Compatible with K15 series key systems.
Technical Specifications
- Max Static Load Capacity: 100 N
- Max Input Torque: 12 N·m
- Recommended Tightening Torque for Fixed Nut: 20 N·m
- Panel Thickness Fit: Adjustable up to TS = 5 mm

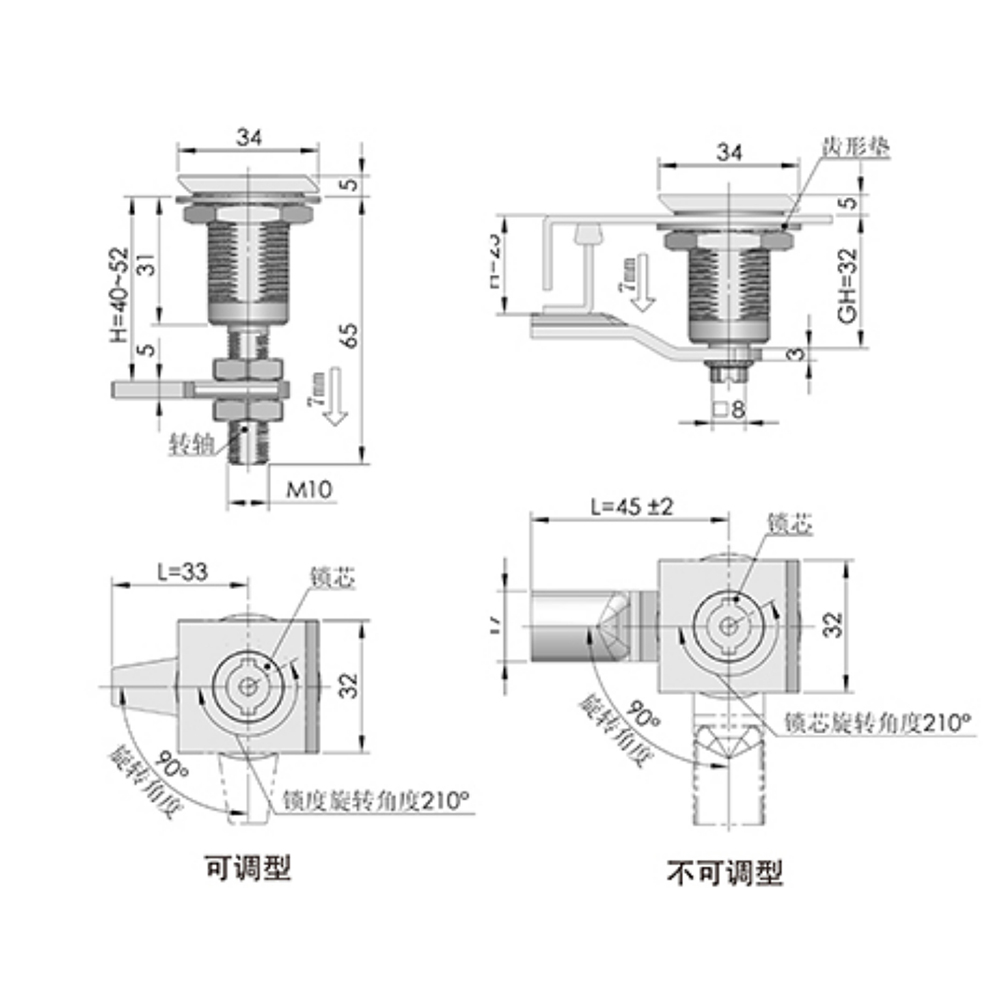

- Latch Dimensions:
- Fixed cam: Length 45 ± 2 mm
- Adjustable cam: Length 33 mm

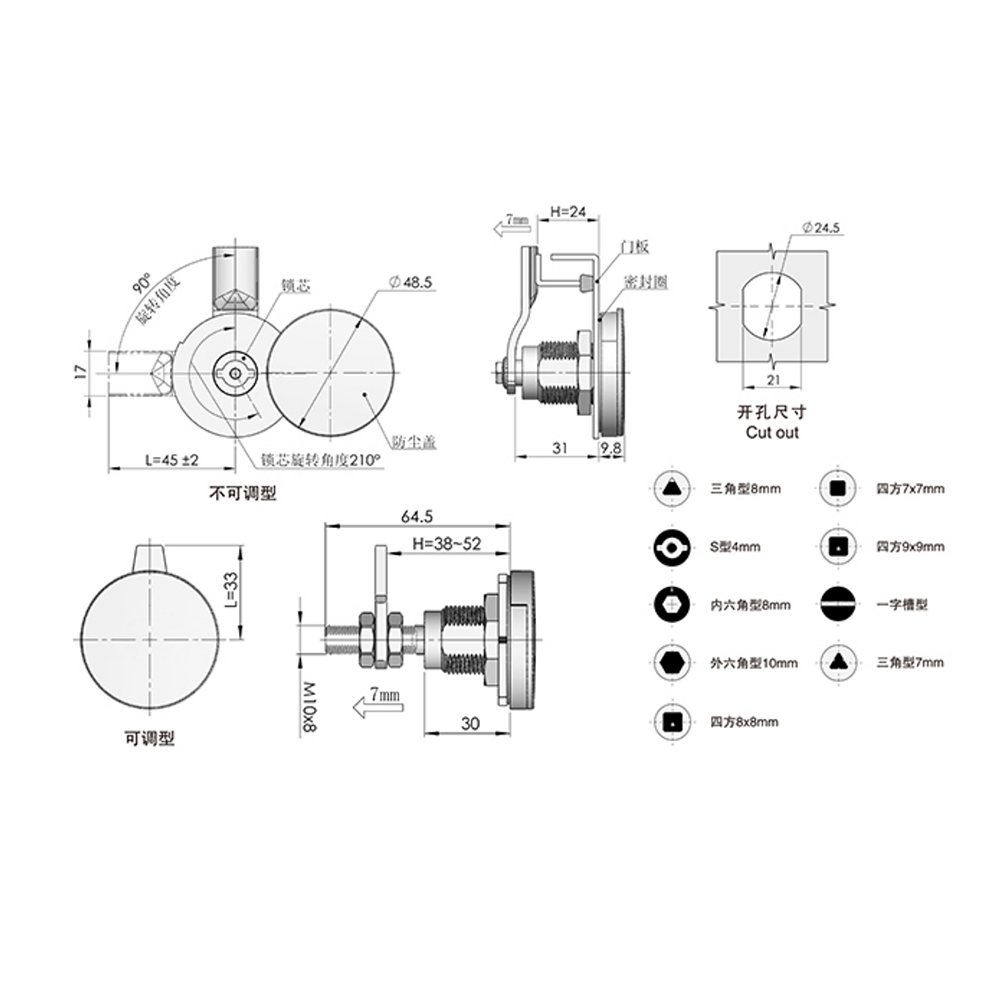

- Cut-Out Dimensions: Ø24.5 mm or square 21 x 21 mm for easy installation.
Applications
- Suitable for control cabinets, industrial enclosures, storage panels, and machinery doors.
Keywords
MS823-1 cam latch, MS823-1A adjustable latch, 90° cam rotation, chrome-plated cam lock, zinc alloy latch, industrial locking solution.
